VX Vortex

Features:
* Liquid type: sewage water
* Uses: domestic, civil, industrial
* Applications: drainage, dirty water - slightly solid particles, emptying tanks
* typology: submersible
* Family: submersible pumps

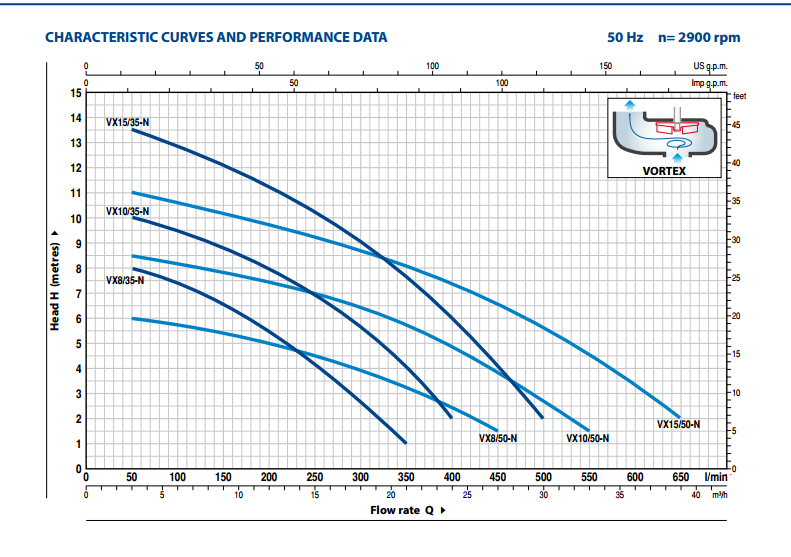

Performance Range:
* Flow rate up to 650 l/min (39,0 m³/h)
* Head up to 15 m
* Application Limit:

Temperature of the liquid to +40 °C
* 5 m maximum immersion depth
(with a sufficiently long power cable)
* Solids passage:
– up to Ø 40 mm for VX8-10-15/35
– up to Ø 50 mm for VX8-10-15/50
* Minimum immersion depth for continuous service:
– 290 mm for VX8-10-15/35
– 320 mm for VX8-10-15/50
